As an important industrial production equipment, Weitu imitation cabinet has very obvious use advantages, because its position in the relevant market is difficult to shake in a period of time. The success of imitation Rittal cabinet depends on its guarantee of equipment operation efficiency and its own. How to install the embedded strip in the imitation Rittal cabinet? The embedded strip with assembly holes is vertically welded on both sides of the console door, and M4 self tapping screws are used, which facilitates the installation of installers. For the use of sealant strip, the sealing performance of EPDM sealant strip is reliable. The door uses pin hinge and can be opened 110 degrees. The grooved box edge prevents dust and water from entering the box, and can cooperate well with the sealing ring to form protection for the box. The bottom adopts boss cover plate or sponge incoming clamp for incoming line. The console cover plate is supported by hydraulic support rod for easy opening.

可以根據仿威圖柜的機柜的鋼體的厚度來判斷，機柜外包裝的鋼體厚度對有著一半的決定的作用。因為許許多多的仿威圖柜的生產廠家的雖然壓得很低，但是他們使用的鋼板的厚度相對較薄。好的仿威圖柜和一般的圖柜之間差距猶如天壤之別，使用性能和使用壽命是相差很大。為了防止被騙上當，在選購方位圖柜的時候應該注意到以下幾點。由于地理原因，南方的機柜一般要比北方隊機柜貴一些。國外標準的機柜要比國內標準的機柜要貴，標準高所以成本越高，自然圖柜的性能就越好。大的差異還是體現在做工上，可以初步根據機器的做工和機器的做個比對，就多少可以知道這臺機器的大體的價位應該是在多少，防止被騙。

It can be judged according to the thickness of the steel body of the imitation Rittal cabinet. The thickness of the steel body of the outer packaging of the cabinet plays a decisive role in determining the price. Because the prices of many manufacturers of imitation Rittal cabinets are very low, but the thickness of the steel plate they use is relatively thin. The gap between a good imitation prestige chart cabinet and a general chart cabinet is like a world of difference, and the service performance and service life are very different. In order to prevent being cheated, you should pay attention to the following points when purchasing azimuth map cabinets. Due to geographical reasons, cabinets in the south are generally more expensive than those in the north. Foreign standard cabinets are more expensive than domestic standard cabinets, so the higher the cost, the better the performance of natural drawing cabinets. The big difference is still reflected in the workmanship. You can make a preliminary comparison between the workmanship of the machine and the price of the machine, and you can know how much the general price of the machine should be, so as to prevent being cheated.

1、固定面板式配電柜固定面板式配電柜也被稱為配電屏，它的正面為柜體面板，能夠用于遮擋和開閉，反面和旁邊面為開放式，能夠接觸到帶電的器材。固定面板式配電柜的防護等級，只能用于一些對性要求不高且連續供電的場合，例如在工礦企業用于變電室集中供電。

1. Fixed panel distribution cabinet fixed panel distribution cabinet is also called distribution panel. Its front is cabinet panel, which can be used for shielding and opening and closing, and its back and side are open, which can contact live equipment. The protection grade of fixed panel distribution cabinet can only be used in some occasions with low safety requirements and continuous power supply, such as centralized power supply in substation rooms in industrial and mining enterprises.

2、防護式配電柜防護式配電柜與固定面板是配電柜相比，有著真實意義上的柜體，除了裝置面外所有旁邊面都有擋板密封。防護式配電柜的柜體選用絕緣材料制作，內部的電器元件與外部離，元件之間也能夠選用護板隔離，因而防護式配電柜的等級較高，能夠應用于工藝現場配電裝置。

2. Protective distribution cabinet compared with the fixed panel, the protective distribution cabinet has a real cabinet body. Except for the device surface, all side surfaces are sealed with baffles. The cabinet body of the protective distribution cabinet is made of insulating materials, the internal electrical components are separated from the outside, and the protective plate can also be used for isolation between the components. Therefore, the safety level of the protective distribution cabinet is high and can be applied to the power distribution device on the process site.

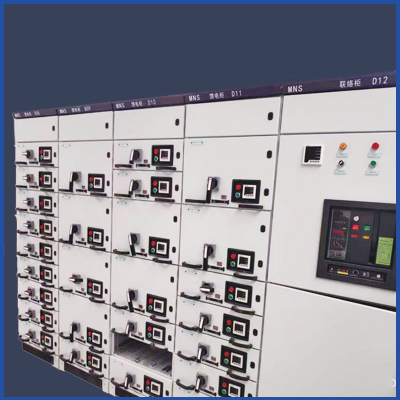

3、抽屜式配電柜抽屜式配電柜是性較高的配電設備之一，它選用鋼板制成柜體，柜體內裝置有抽屜，各個電器元件都被裝置在抽屜內，構成獨立的功能單元。抽屜式配電柜的牢靠、互換性和性都高于以上兩種配電柜，可適用于對供電牢靠性要求較高的集中操控配電中心。

3. Drawer type power distribution cabinet drawer type power distribution cabinet is one of the power distribution equipment with high safety. It is made of steel plate. There are drawers in the cabinet. All electrical components are installed in the drawer to form an independent functional unit. The reliability, interchangeability and safety of the drawer type distribution cabinet are higher than the above two kinds of distribution cabinets, and can be applied to the centralized control distribution center with high requirements for power supply reliability.

4、動力照明配電柜動力照明配電柜選用封閉式裝置，等級依據使用場合的要求不同而有所不同。電氣控制柜制動力照明配電柜多作為初級配電設備使用，例如用于工礦企業出產現場的配電操控。

4. Power lighting distribution cabinet power lighting distribution cabinet adopts closed device, and the safety level varies according to the requirements of different occasions. Electric control cabinet braking power lighting distribution cabinet is mostly used as primary power distribution equipment, such as power distribution control at the production site of industrial and mining enterprises.
