仿威圖機柜保溫柜的制作注意事項!

發布時間:2022-03-17 來源:http://m.wuhanbx.com/ 瀏覽量:

1、仿威圖配電柜保溫柜其柜型結構,仍是在仿威圖野外機柜的基礎上演變而來,全體野外防水作用很好,密封性;
1. First of all, the cabinet type structure of the insulation cabinet of the imitation Rittal distribution cabinet is still evolved on the basis of the imitation Rittal field cabinet. All the field waterproof functions are very good and the sealing performance is excellent;
2、保溫柜在野外運用的時候,一般多是在北方嚴寒的當地,冬天溫度能到達零下20多度,甚更低!那么為了確保柜內元器件正常運轉作業,必須要保持柜內一定的溫度,方法有幾種。一種是貼復鋁箔保溫棉,厚度一般在10-20mm以上,甚更厚。這種保溫棉的保溫作用很好,也可以再配一個加熱器和一個溫控器,泰予出產的仿威圖加熱器和溫控器可以搭配運用,溫控器設定好溫度今后,當環境溫度到達設定溫度值時,加熱器就開始作業,這樣柜內部溫度也會慢慢升高。
2. When the heat preservation cabinet is used in the field, it is usually in the cold place in the north. In winter, the temperature can reach more than minus 20 degrees, or even lower! In order to ensure the normal operation of components in the cabinet, it is necessary to maintain a certain temperature in the cabinet. There are several methods. One is to paste aluminum foil insulation cotton, which is generally more than 10-20mm thick or even thicker. This kind of thermal insulation cotton has good thermal insulation effect. It can also be equipped with a heater and a temperature controller. The imitation Weitu heater and temperature controller produced by Taiyu can be used together. The temperature controller sets the temperature. In the future, when the ambient temperature reaches the set temperature value, the heater will start to operate, so that the internal temperature of the cabinet will rise slowly.
3、有些保溫柜在野外運用時,并不是裝元器件,而是再里面裝水管和壓力表,閥門等。這種也是操控水站,或許其它什么水處理體系設備的,冬天溫度低,不能讓水管結冰凍住,這時候也需求給柜體進行保溫或許加熱。

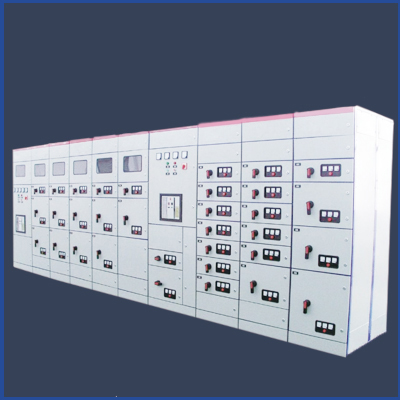

 MNS低壓抽屜柜
3. When some insulation cabinets are used in the field, they are not equipped with components, but with water pipes, pressure gauges, valves, etc. This kind is also used to operate the water station or other water treatment system equipment. The temperature is low in winter, so the water pipe cannot be frozen. At this time, it is also necessary to heat the cabinet.
4、在制造仿威圖機柜(保溫柜)的時候,需求注意,柜內要盡可能的平整,除了非必要的接地螺柱以外,其它螺絲螺柱要盡可能的防止,因為內部越是平坦,后期貼保溫棉就越方便,保溫作用也越好。甚不需求運用野外機柜空調或許冷熱交換器。
4. When manufacturing the imitation Rittal cabinet (insulation cabinet), it should be noted that the cabinet should be as flat as possible. Except for the unnecessary grounding studs, other screws and studs should be prevented as much as possible, because the more flat the interior is, the more convenient it is to paste insulation cotton in the later stage, and the better the insulation effect is. There is no need to use outdoor cabinet air conditioner or cold heat exchanger.
5、仿威圖野外接線箱也可以做保溫結構,原理都是相同的,只不過反面的掛墻附件,要直接焊接上去,不能運用通用規范的AE箱壁掛件
5. The imitation Weitu field junction box can also be used as thermal insulation structure, and the principle is the same, except that the wall hanging accessories on the opposite side should be directly welded, and the AE box wall hanging parts of general specifications cannot be used
6、其他的柜型,例如仿威圖琴式操作臺、PC電腦柜、工業電腦操控柜、鋁合金懸臂體系、防水端子盒、PS九折型材柜、威圖電柜等要想做保溫結構,也可以考慮,但是在制造工藝上會比較復雜,這個要看詳細的現場環境要求。
6. Other cabinet types, such as Vito piano like console, PC computer cabinet, industrial computer control cabinet, aluminum alloy cantilever system, waterproof terminal box, PS 10 fold profile cabinet, Vito electric cabinet, etc., can also be considered if they want to make thermal insulation structure, but the manufacturing process will be more complex, which depends on the detailed on-site environmental requirements.
